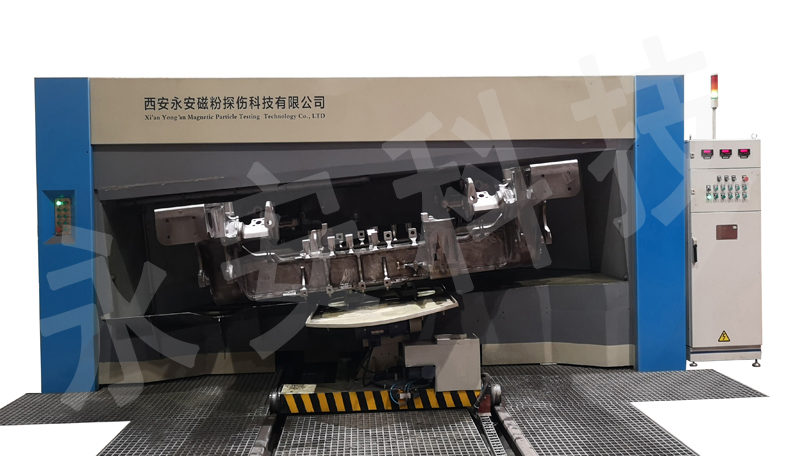

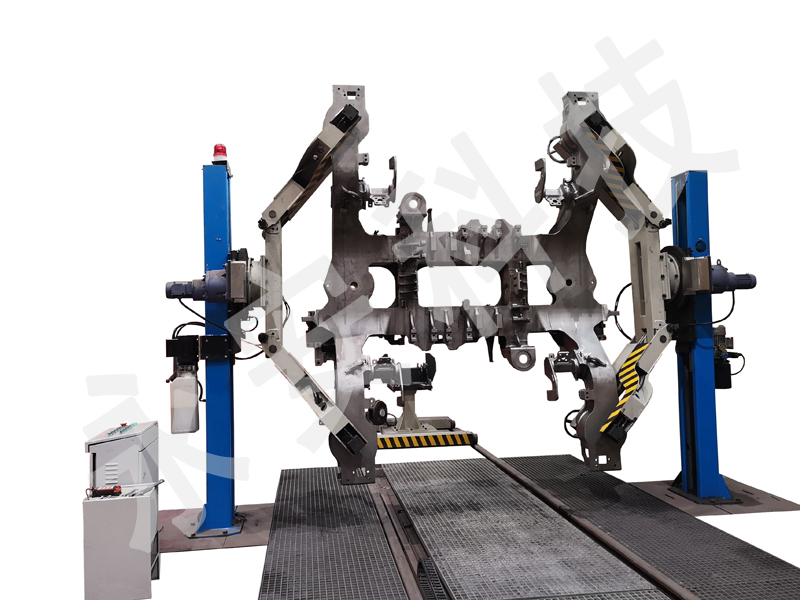

| XWD-D型旋轉磁場動車、地鐵車輛構架磁粉探傷機 適用范圍： 適用于動車、地鐵車輛構架的專用磁粉探傷 特點及技術指標： 1. 采用自主知識產權的旋轉磁場磁化技術對探傷零件非接觸磁化，適應能力強，檢測可靠 2. 工件放置在可傾斜輸送臺車，傳遞方便，檢測效率高 3. PLC程序控制噴淋與磁化過程，減少影響探傷的人為因素，操作簡單 4. 傾斜式腔口結構使磁懸液的回流極為便利，減了磁懸液的浪費 5. 翻轉機舉升工件平穩可靠，工件±180°翻轉，便于觀察 6. 磁化電流不等值衰減，剩磁滿足要求 7. 磁化方式：旋轉磁場 8. 額定輸入功率：120kW 9. 旋轉磁化峰值電流：0-3000A連續可調 10. 磁化線圈斷面尺寸：4088×988mm 11. 工件回轉速度：0-1r/min 12. 檢測靈敏度：清晰顯示A1型標準試片15/50的人工缺陷 13. 剩磁：不大于0.3mT 14. 主機外形尺寸：9.7m×6.5m×3.4m(三工位) 7.2m×6.5m×3.4m(二工位) 15. 可檢工件最大重量：2000kg
XWD-D Magnetic Particle Flaw Detector For CRH & Metro Bogie Frame Applicable scope It is suitable for the magnetic particle testing of CRH and metro bogie frame. Features and Technical parameters 1. Adopt to the independent intellectual property rights of rotating magnetic field non-contact magnetization, magnetic field distribution more uniform, use and reliable 2. The workpiece is placed on the tilting trolley, which is convenient to transfer and has high detection efficiency 3. Inspection process adopts PLC programmable controller control, easy operation and reliable 4. Inclined cavity structure makes the magnetic suspension returning very convenient, which reducing the waste of the magnetic suspension 5. Turnover mechanism is stable and reliable for lifting wokpiece and rotating wokpiece in ±180°, convenient for observation 6. Magnetizing current is not equivalent attenuation, remanence meets the requirements 7. Magnetization mode: Rotary Magnetic Field 8. Rated input power: 120kW 9. The peak value current of rotating magnetization:0-3000A continuously adjustable 10. Magnetizing coil section: 4088 × 988mm 11. Workpiece rotating speed: 0-1r/min 12. Detecting sensitivity: Clearly displays the artificial faults of A1 standard test piece 15／50 13. Residual Field: ≤0.3mT 14. Mainframe Contour Size: 9.7m×6.5m×3.4m(three workstation ) 7.2m×6.5m×3.4m(two workstation ) 15. Max Workpiece Weight: 2000 kg
|
