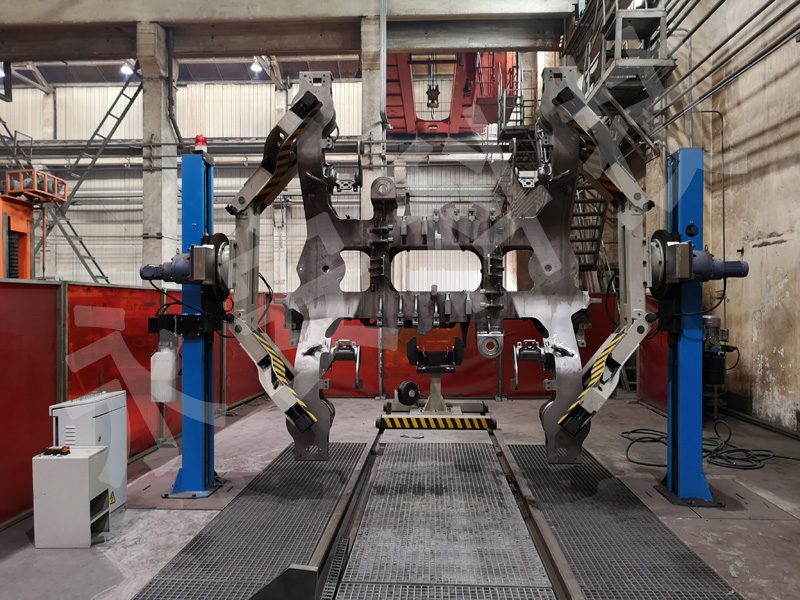

HDL-A型動車、地鐵車輛雙柱液壓構架翻轉機 適用范圍： 適用于動車、地鐵車輛轉向架構架的檢修和拆卸、組裝以及探傷等作業過程中的舉升和翻轉。 特點及技術指標： 1. 構架翻轉機的夾持采用液壓自動夾持機構，減少了裝夾的作業時間、夾持安全可靠，效率高。 2. 構架翻轉機具備±180°翻轉功能，并可從正反面裝卸構架。 3. 采用雙柱式結構，安裝方便，可有效利用空間 4. 鏈傳動液壓缸驅動，確保構架平穩升降 5. 配備止動擋條及棘輪自鎖裝置，避免構架在工作時下降 6. 四托臂結構，轉動靈活、裝卡方便 7. 翻轉機構采用齒輪傳動，確保構架翻轉時平穩可靠 8. 液壓缸配有流量控制器，確保在軟管破裂時控制下降速度 9. 透明油箱，便于檢查油位，油箱容量 10L 10. 供應電源：三相交流電：380V±10％，50Hz 11. 額定輸入功率：2.2kW 12. 額定載荷：4000kg 13. 起升高度：1820mm 14. 升降速度：1500mm/min 15. 翻轉速度：0-0.5r/min 16. 翻轉角度：±180° 17. 外形尺寸：3.25m×4.3m×3.35m 18. 設備重量：1000kg
XWD-D Two-post hydraulic Lift For CRH & Metro Bogie Frame Applicable scope It is suitable for lifting and rotating the bogie frame in the process of inspection,disassembly, assembly and flaw detection for CRH and metro. Features and Technical parameters 1. Adopt to hydraulic automatic clamping mechanism,reducing operating time,safe and reliable clamping,high efficiency. 2. Two-post hydraulic Lift has ±180°rotation function，it can load and unload bogie frame from front or back. 3. Adopt to two-post structure，the space will be used effectively and easy to install 4. Chain transmission and hydraulic cylinder drive ,Make sure the bogie frame is lifted smoothly 5. Equipped with stop bar and ratchet self-locking device, Avoid the bogie frame degradation at work 6. Four-arm structure ，flexible rotation and easy to clamp 7. The rotating mechanism is driven by gears ,make sure the bogie frame is stable when it turns over. 8. The hydraulic cylinder is equipped with a flow controller,Be sure to control the rate of descent when the hose breaks 9. Transparent tank is easy to check oil level，its capacity is 10L 10. Power supply: Three-phase alternating current: 380V±10%, 50Hz 11. Rated input power: 2.2kW 12. Rated load : 4000kg 13. Lifting height：1820mm 14. Lifting speed: 1500mm/min 15. Rotating speed: 0-0.5r/min 16. Rotating range: ±180° 17. Machine overall size:3.25m×4.3m×3.35m 18. Machine weight:1000kg
|
