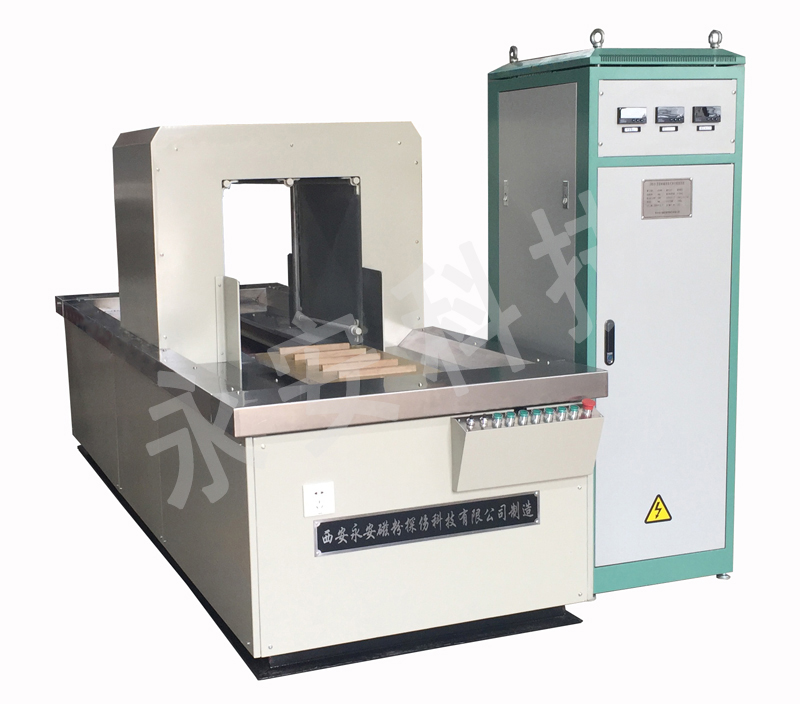

| XWD-B型旋轉磁場床式多功能探傷機 適用范圍 適用于復雜形狀零件和桿件的磁粉探傷檢測，如機車車輛的異型件、齒輪、軸銷類零件的磁粉探傷。 特點及技術指標 1. 采用旋轉磁場磁化技術滿足復雜形狀工件探傷的要求 2. 隧洞式旋轉磁場磁化裝置配合探傷小車，適合各種復雜形狀零部件探傷的需要，可實現一次磁化探傷多個工件 3. 探傷過程采用進口PLC可編程控制器控制，操作簡便可靠 4. 探傷小車實現了旋轉磁化與周向磁化的組合，操作方便 5. 磁化電流不等值衰減，剩磁小 6. 床式一體化設計，安裝調試簡便 7. 磁化方式：旋轉磁場+周向磁場 8. 輸入功率：40kW 9. 旋轉磁化峰值電流：0-2500A連續可調 10. 周向磁化峰值電流：0-1500A連續可調 11. 檢測靈敏度：清晰顯示A1型標準試片15/50的人工缺陷 12. 旋轉磁化有效范圍：600mm 13. 旋轉磁場磁化通道截面：400×300mm（可訂制） 14. 檢測桿軸零件最大長度：1000mm
XWD-B Rotary Magnetic Field Bed type multifunctional flaw detector Applicable scope It is suitable for magnetic particle inspection of complicated shape parts and bars, such as abnormal parts, gears and shaft pin parts of locomotives Features and Technical parameters 1. Rotating magnetic field magnetization technology is adopted to meet the requirements of flaw detection of workpieces with complex shapes 2. The tunnel-type rotating magnetic field magnetization device, combined with the flaw detection car, is suitable for the flaw detection needs of parts with various complex shapes, and can realize the single magnetization flaw detection of multiple workpieces 3. The inspection process is controlled by imported PLC programmable controller, which is simple and reliable 4. The inspection trolley realizes the combination of rotating magnetization and circumferential magnetization, which is easy to operate 5. Non-equivalent attenuation of magnetization current and small remanence 6. Integrated bed design, easy installation and debugging 7. Magnetization mode: rotating magnetic field + circumferential magnetic field 8. Input power: 40kW 9. Rotation magnetization peak current: 0-2500a continuously adjustable 10. Circumferential peak magnetization current: 0-1500a continuously adjustable 11. Detection sensitivity: the manual defects of 15/50 standard sample A1 are clearly displayed 12. Effective range of rotating magnetization: 600mm 13. Section of magnetization tunnel of rotating magnetic field: 400*300mm (customizable) 14. Maximum length of test rod and shaft parts: 1000mm
|
