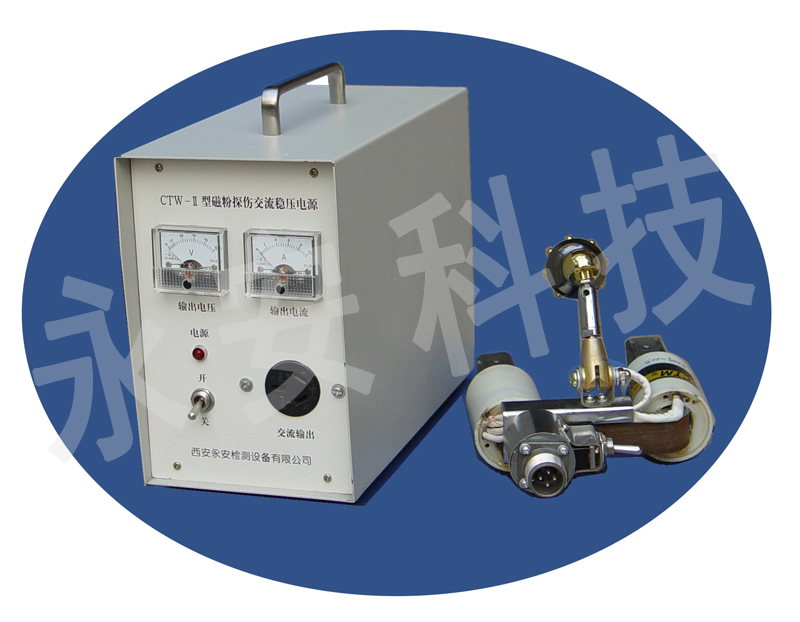

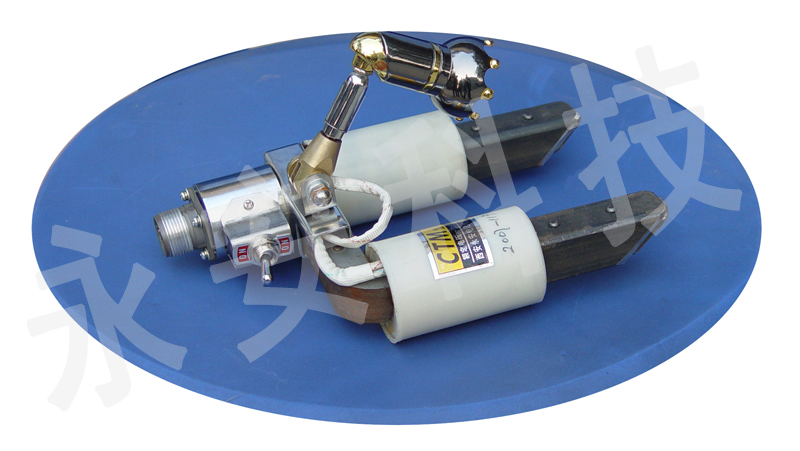

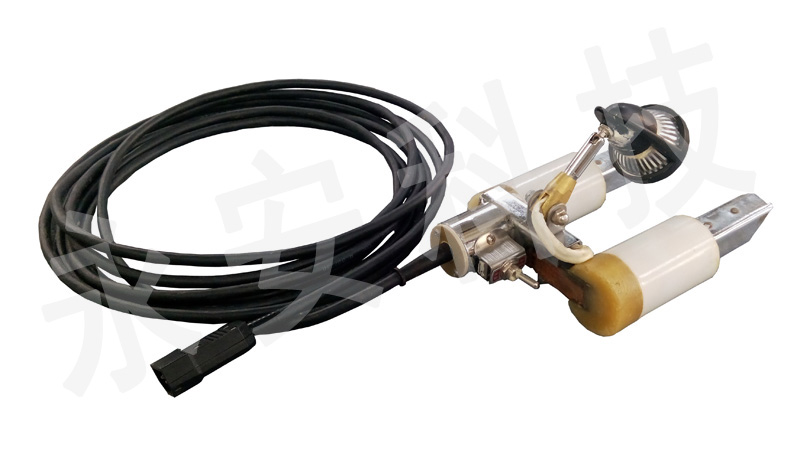

| QCJ-Ⅱ型輕便磁粉探傷機 該探傷機按主機（電源）結構分為手推車式和便攜式（手提電源式）兩種，均配套CTM-II系列探傷器，該探傷器有普通干法形式和全封閉濕法形式兩種 適用范圍 對鐵磁性材料制件進行局部磁粉探傷檢測，可發現其表面、近表面缺陷 特點及技術指標 1. 結構小巧，移動方便，應用廣泛 2. 專有技術的磁化電源具有自動穩壓、電纜短路保護功能 3. 磁化電源具有寬電壓適應特性，允許電壓波動范圍大 4. 探傷器鐵芯采用進口高導磁率定晶硅鋼片，性能穩定檢測靈敏度高 5. 探傷器磁極間距連續可調，便于適應不同大小、形狀探傷對象的需要 6. 專用輕便推車設有彈性懸架減震結構，帶有探頭收納箱和工具存放盒 7. 便攜式磁化電源帶有手提把，方便現場使用 QCJ-Ⅱ型探傷機（CTW-Ⅱ型穩壓電源）主要技術指標 1. 輸入電壓 220 V 2. 輸入電壓允許波動范圍 160 V ~260 V 3. 穩壓輸出 36（±10%）V 4. 電源頻率 50Hz 5. 額定功率 0.5 kW 6. 額定輸出電流 14 A 7. 溫升 ≤50 ℃ 8. 自重 39（9.9） kg CTM-Ⅱ型探傷器主要技術指標： 1. 額定工作電壓 36 V 2. 額定工作電流 5 A 3. 磁軛臂長度 150 mm 4. 磁軛跨度（間距） 30-160 mm 5. 提升力 ≥3.5kg 6. 溫升 ≤50℃ 7. 自重 2.3kg
QCJ-II Mobile magnetic particle flaw detector Including two kinds，trolley(handcar) magnetic particle detector and portable magnetic particle detector, All form a complete set of CTM - II series detector, Flaw detector is divided into two kinds of dry method and wet method Applicable scope For the ferromagnetic material local magnetic powder flaw detection, can find its surface and near surface defects Features and Technical parameters 1. Compact structure, convenient to move, and widely used 2. Magnetic power automatic voltage regulator, short circuit protection function 3. Magnetization adaptive character with wide voltage allows a large range of voltage fluctuation 4. Flaw detector core adopts high permeability crystalline silicon steel sheet production, stable performance high detection sensitivity 5. Flaw detector magnetic pole spacing adjustable, easy to adapt to the needs of different size, shape detection object 6. Dedicated trolley(handcar) equipped with elastic suspension structure, with probe locker and tool storage box 7. Portable magnetic power supply a handle, convenient for use Technical parameters of QCJ-II Mobile magnetic particle flaw detector(with CTW-II power) 1. input voltage : 220 V 2. input voltage fluctuation range: 160 V ~260 V 3. output voltage: 36（±10%）V 4. power frequency: 50Hz 5. rated power: 0.5 kW 6. rated out current: 14 A 7. temperature rising: ≤50 ℃ 8. dead weight: 39（9.9） kg Technical parameters of CTM - Ⅱ flaw detector 1. rated operation voltage: 36 V 2. rated operation current: 5 A 3. magnet yoke length: 150 mm 4. magnet yoke span(spacing): 30-160 mm 5. elevating force: ≥3.5kg 6. temperature rising: ≤50℃ 7. dead weight: 2.3kg
|
